R+W Pin and Bush Coupling – Series RC1
HIGH TORQUE WITH VIBRATION DAMPING: PIN AND BUSH COUPLINGS FROM R+W

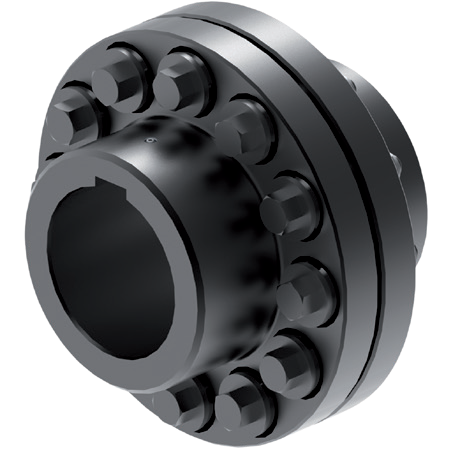

The RC1 pin and bush coupling from R+W combines high torque transmission with a compact, robust design. Steel hubs and elastic NBR elements provide a flexible connection between drive and driven shafts, damping oscillation and vibration while accommodating axial, radial and angular misalignment.
Torque is transmitted through pins acting against the elastic bushes. The bushes deform under load, giving the coupling its vibration-damping characteristics and allowing the small movements associated with shaft misalignment. This makes the RC1 an option for industrial drives where smooth running and a degree of torsional flexibility are important.
Six standard sizes cover rated torques from 500 to 15,000 Nm. Axial plug-in assembly helps simplify installation, and customer-specific modifications and special materials can be considered where the application requires them. Our technical team can help you review torque, speed, shaft dimensions, duty and operating conditions to identify a suitable size and configuration.
Features & Benefits
High torque transmission in a compact design
Damping of oscillation and vibration
Compensation for axial, radial and angular shaft misalignment
Steel hubs with elastic NBR elements in 80 Shore A hardness
Straightforward axial plug-in assembly
Maintenance-free design with long service life, as specified by R+W
Customer-specific modifications and special materials available on request
Specifications
Rated torque: 500 to 15,000 Nm across six sizes
Maximum torque: 1,000 to 30,000 Nm, depending on size*
Shaft bore range: 25 to 135 mm, depending on size
Outside diameters: 131 to 318 mm
Overall lengths: 98 to 237 mm
Maximum speeds: 3,600 to 9,000 r/min, depending on size; higher speeds on request
Standard hub material: steel
Elastic elements: NBR, 80 Shore A
*Maximum torque is a separate catalogue limit, not the continuous rated torque. Final selection must account for operating duty, starting and peak loads, speed, environment and the permitted misalignment of the selected size. Allow space for pin removal as shown in the RC1 datasheet.
